20.3 MAP® IDC刺破式 IX連結器 適配電纜組裝(AK932系列 BS EN 50264耐酸鹼電纜)

為實現海下推進作業、水下監控攝影或離岸風電動力系統運作。
大域提出工業級耐水性/耐酸鹼佳的乙太網路電纜(AK932系列 通過BS EN 50264耐酸鹼標準)。

可搭配IP67、IP68的防水RJ-45接頭使用,滿足防水、耐水壓與高頻訊號傳輸的需求。

另可搭配IDC刺破型金屬接頭,達到線纜抗干擾並優化傳輸特性等優點。

To realize the underwater propulsion operation, underwater surveillance photography, or offshore wind power system operation, we proposed an industrial-grade Ethernet cable with excellent water resistance (AK932 series, Anti-acid, and alkali compliant with BS EN 50264 standard).

This cable can be used with IP67, IP68 waterproof RJ-45 connectors to meet the needs of waterproof, acid and alkali resistance and high-frequency signal transmission.

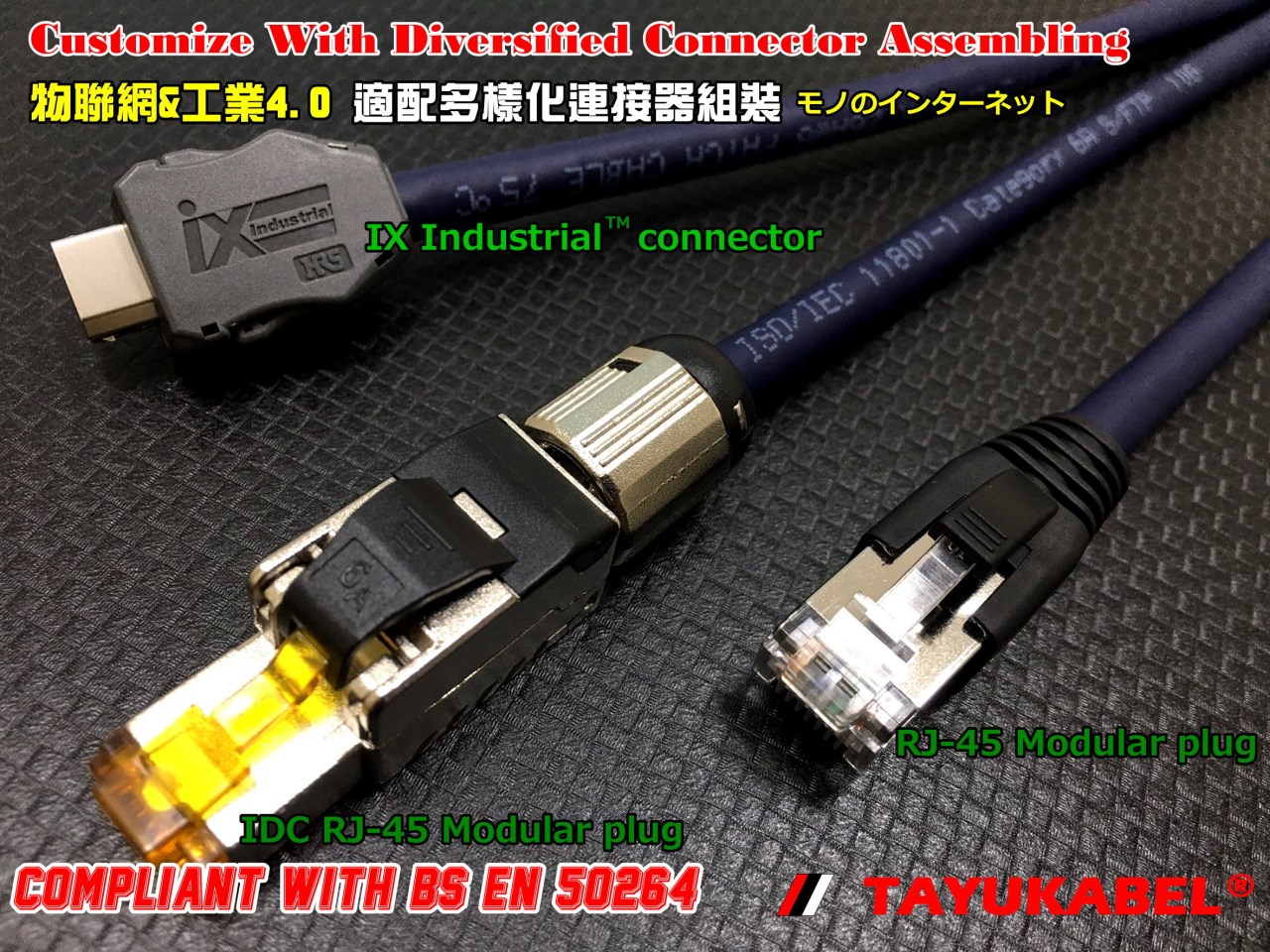

It can also be used with IDC RJ-45 modular plug to achieve the advantages of cable anti-interference and optimized transmission characteristics.

分享到

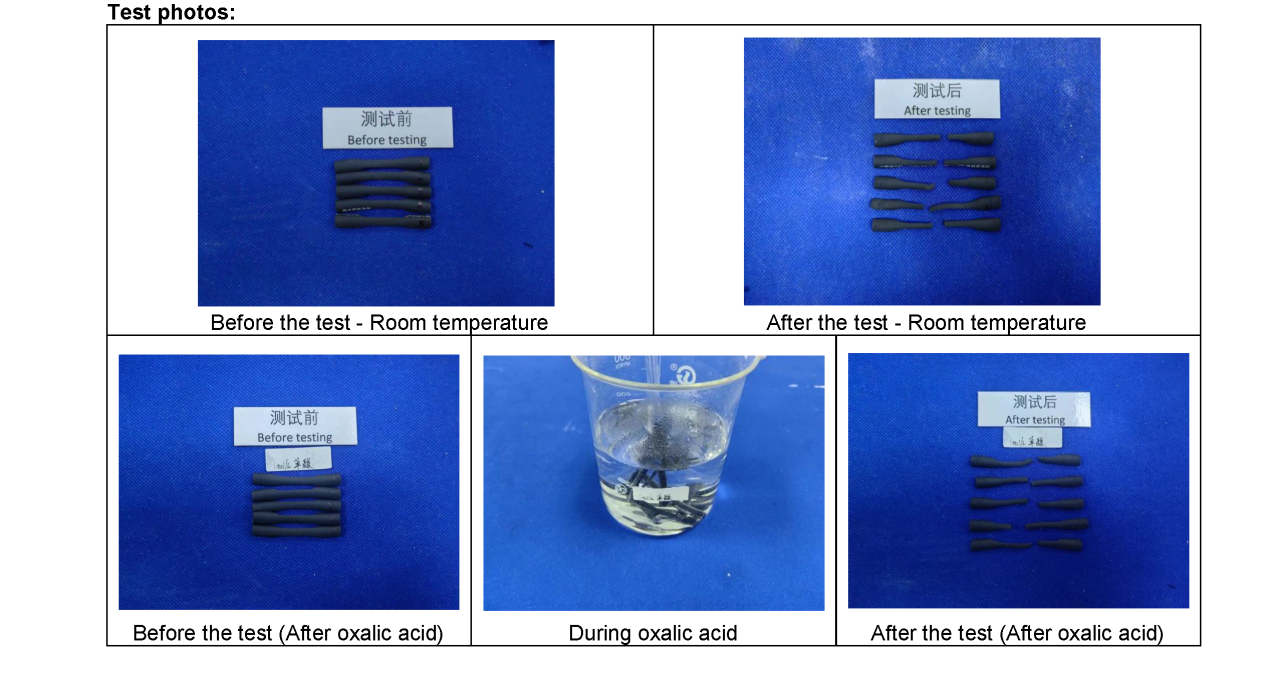

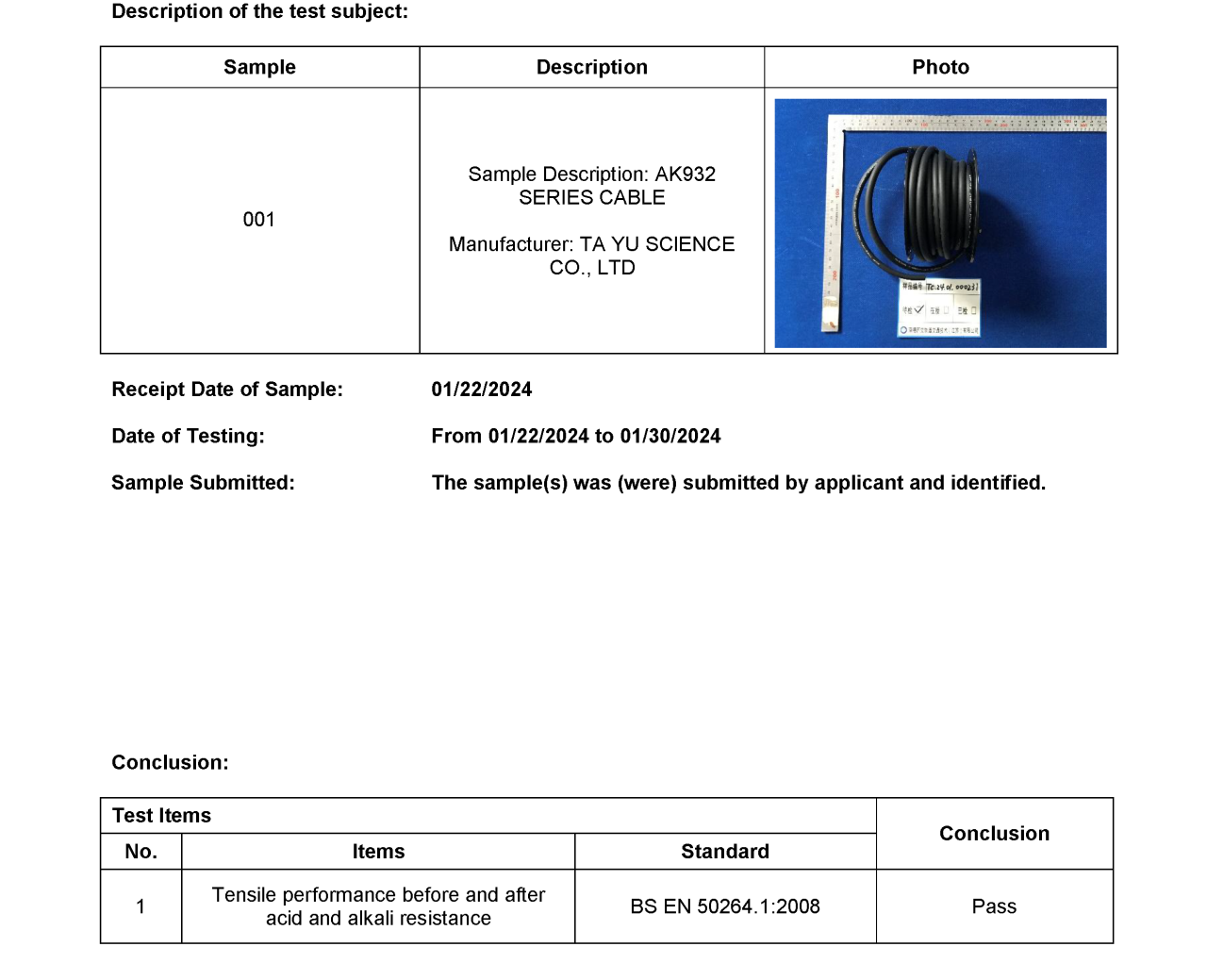

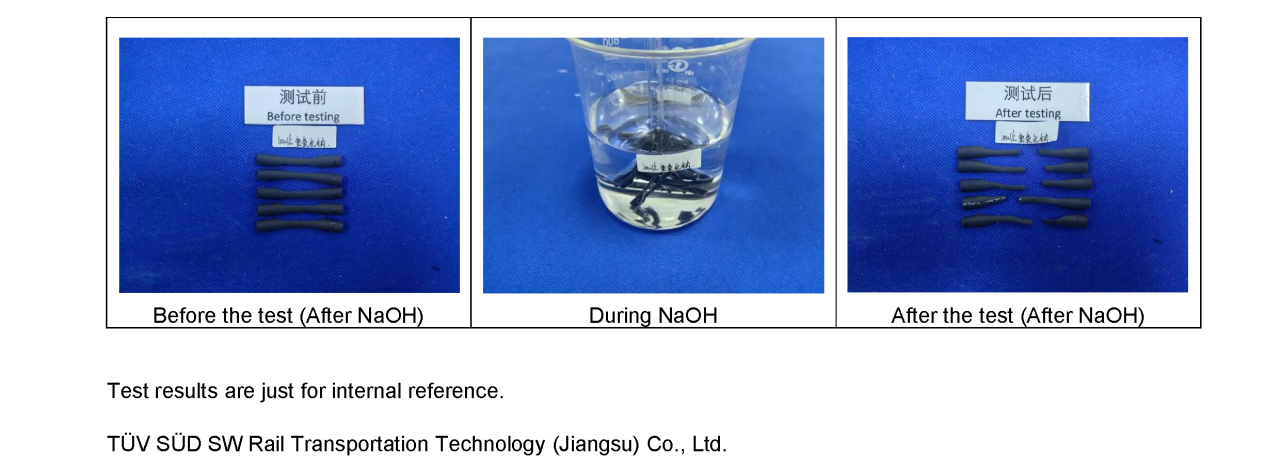

AK932系列 產品通過 BS EN 50264 耐酸鹼標準 (TÜV SÜD)

認證實驗室:德國萊茵TÜV SÜD LAB

測試標準: BS EN 50264 Acid and Alkali Resistance

認證號碼:TC.24.01.000231

認證號碼:TC.24.01.000232

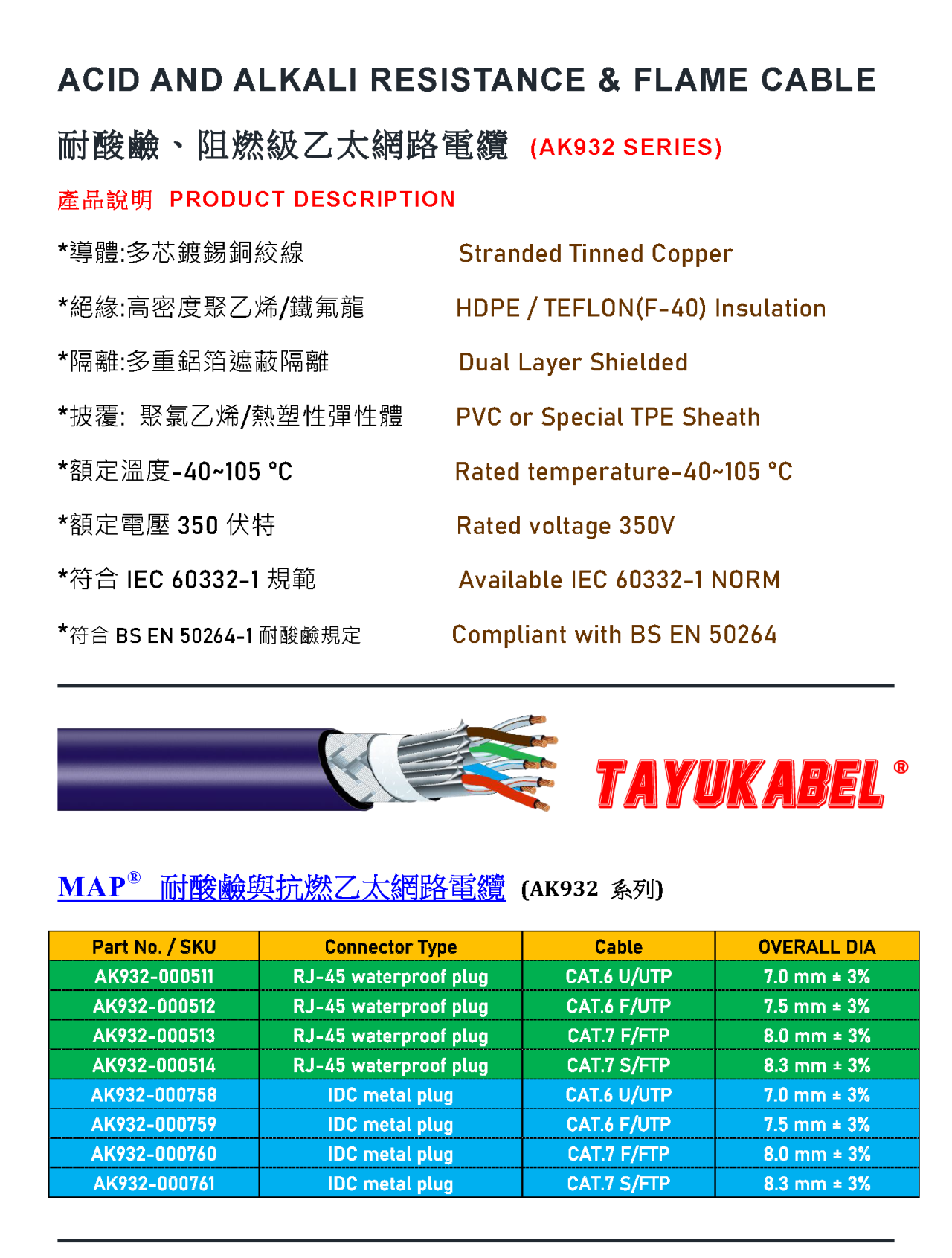

產品系列: TAYUKABEL® AK932 SERIES



  產品型錄 下載連結








  ←【相關連結 】MIL-STD-810H-505.7 軍規標準介紹 相關連結

  ←【相關連結 】AK 932系列,通過MIL-STD-810H軍規標準(抗日照/抗UV)
