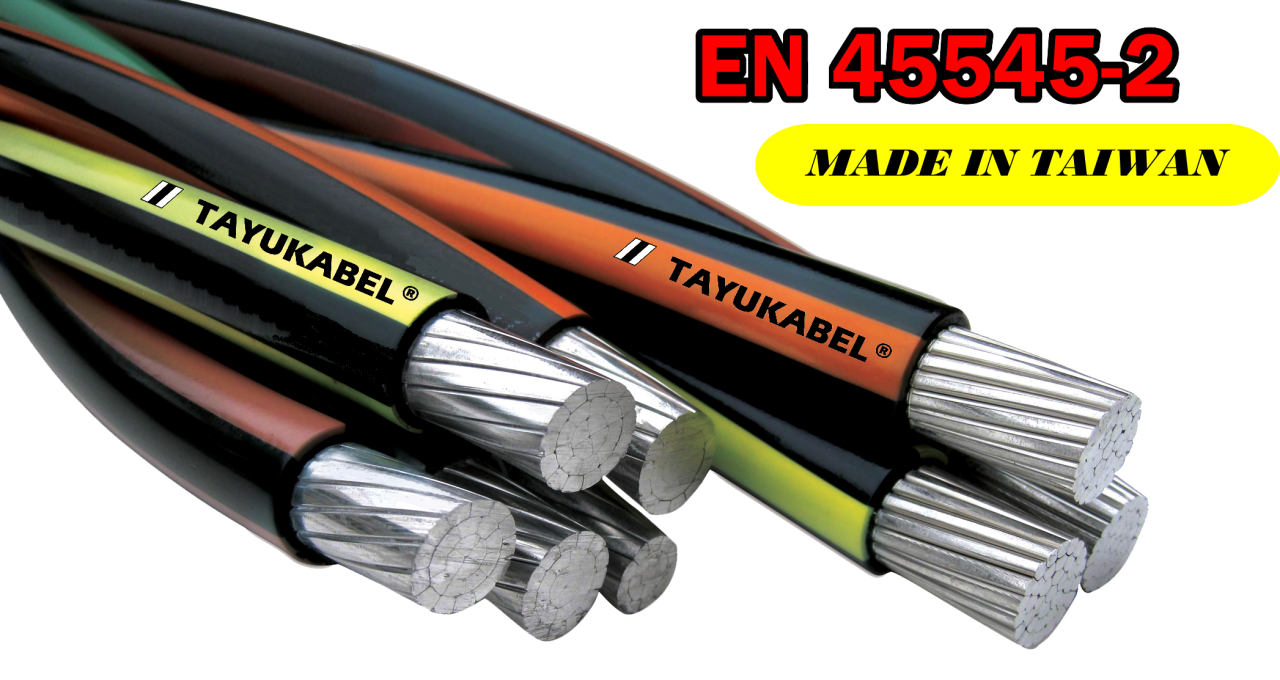

12.0 TAYUKABEL® EN 45545-2 RAILWAY CABLE 【498K-1320 SERIES 】

TAYUKABEL® RAILWAY CABLE 【498K-1320 SERIES 】
◆Cable compliant to EN 45545-2
◆Cable Flame compliant to IEC 60332-3
◆Smoke Density compliant with IEC 61034-2
◆Toxicity Index compliant to EN-50305
◆Corrosivity of combustion gases compliant with IEC 60754-2 (EN-50267-2)
◆Content of fluorine compliant to EN-60684-2

分享到

商品特色

TAYUKABEL^®498K-1320 SERIES RAILWAY CABLE EN 45545-2

Fire protection on railway vehicles, hazard level	HL1 - HL3	EN 45545
Vertical flame spread	50<L ≦ 540mm	EN 60332- 1- 2
Vertical flame spread, bunched, D ≦ 6 mm	L ≦ 1.5 m	EN 50305, 9.1.2
Vertical flame spread, bunched, 6 < D < 12 mm	L ≦ 2.5 m	EN 50305, 9.1.1 (EN 60332- 3- 25)
Vertical flame spread, bunched, D ≧ 12 mm	L ≦ 2.5 m	EN 60332- 3- 24
Smoke density	T ≧70 %	EN 61034- 2
Toxicity	ITC ≦ 6	EN 50305, 9.2

Fire protection on railway vehicles, level of protection	1 - 4	DIN 5510
Vertical flame spread	50 < L ≦ 540 mm	EN 60332- 1- 2
Vertical flame spread, bunched, D ≦ 6 mm	L ≦ 1.5 m	EN 50305, 9.1.2
Vertical flame spread, bunched, 6 < D < 12 mm	L ≦ 2.5 m	EN 60332- 3- 25
Vertical flame spread, bunched, D ≧ 12 mm	L ≦ 2.5 m	EN 60332- 3- 24
Smoke density	T ≧ 60 %	EN 61034- 2
Corrosivity of combustion gases	pH ≧ 4.3, C ≦ 10 mS/mm	IEC 60754-2 (EN 50267- 2- 2)
Amount of halogen acid gas	HCl + HBr ≦ 0.5 %	IEC 60754-1 (EN 50267- 2- 1)
Content of fluorine	HF ≦ 0.1 %	EN 60684- 2, 45.2 (IEC 60684-2)
Toxicity	ITC ≦ 6	EN 50305, 9.2
