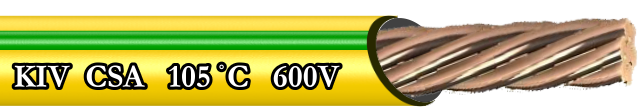

KIV wire. Use environmentally materials, rated voltage 600V, temperature resistance 105 ℃. CSA certification, wire applications extend to marine cables, oil-resistant deck cables and automation equipment.
KIV 600V,105℃
MODEL
mm²
導體結構
NO.X MM
絕緣厚度
INS THK
完成外徑
OVERALL DIA
絕緣電阻
INS RES
0.5 mm²
20 /0.18mm
0.8 mm
2.20 mm
60 MΩ/KM(20℃)
0.75 mm²
30 / 0.18mm
2.50 mm
1.25 mm²
50 / 0.18mm
3.10 mm
2.0 mm²
37 / 0.26mm
3.60 mm
3.5 mm²
65 / 0.26mm
4.10 mm
5.5 mm²
105 / 0.26mm
1.0 mm
5.10 mm
8.0 mm²
7 / 22 / 0.26mm
1.2 mm
6.10 mm
50 MΩ/KM(20℃)
14 mm²
7 / 39 / 0.26mm
1.4 mm
7.60 mm
22 mm²
7 / 60 / 0.26mm
1.6 mm
9.90 mm
40 MΩ/KM(20℃)
38 mm²
7 / 107 / 0.26mm
1.8 mm
12.50 mm
50 mm²
19 / 52 / 0.26mm
1.85 mm
14.60 mm
30 MΩ/KM(20℃)
60 mm²
19 / 62 / 0.26mm
15.60 mm
80 mm²
19 / 83 / 0.26mm
2.1 mm
17.20 mm
100 mm²
19 / 104 / 0.26mm
18.70 mm
125 mm²
37/64/0.26mm
2.25 mm
21.3 mm
20 MΩ/KM(20℃)
150 mm²
37/77/0.26mm
2.3 mm
23.0 mm
200 mm²
61/62/0.26mm
2.6 mm
26.5 mm
250 mm²
61/77/0.26mm
28.9 mm
325 mm²
61/101/0.26mm
3.2 mm
33.6 mm
KIV PVC Withstand current data
