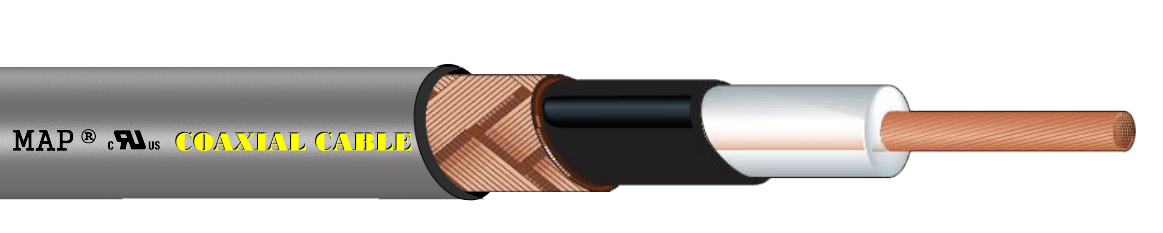

8.1 UL 1107.UL 1365 Coaxial Cable

High resolution / HD coaxial cable, used in communications equipment / monitors / portable cameras and so on. Public construction, mass transit system, intelligent home, preservation system for application.

分享到

 PRODUCT DESCRIPTION

* Bare copper or Tinned copper conductor

* PE or FRPE insulation

* TC or Bare copper braid shield

* Low loss and high transmission efficiency.

* Rated temperature 60 °C

* Rated voltage:300V

* Available UL &CSA flame test.

Coaxial cable UL1107

STYLE

AWG

NO. OF COND.

INS THK

BRAID SHIELD

JACKET THK

OVERALL DIAMETER

UL1107 (stranded)

30

7/0.102

0.4 mm

16/4/0.102

0.4 mm

2.4 mm ±0.1

UL1107 (stranded)

28

7/0.127

0.4 mm

16/4/0.102

0.4 mm

2.5 mm ±0.1

UL1107 (stranded)

26

7/0.160

0.4 mm

16/4/0.127

0.4 mm

2.8 mm ±0.1

UL1107 (stranded)

24

7/0.203

0.4 mm

16/4/0.127

0.4 mm

2.9 mm ±0.1

UL1107 (stranded)

22

7/0.255

0.4 mm

16/4/0.127

0.6 mm

3.3 mm ±0.15

UL1107 (solid)

30

1/0.254

0.4 mm

16/4/0.102

0.4 mm

2.4 mm ±0.1

Coaxial cable UL1365

STYLE

AWG

NO. OF COND.

INS THK

BRAID SHIELD

JACKET THK

OVERALL DIAMETER

UL1365 (stranded)

30

7/0.102

0.66 mm

16/5/0.102

0.4 mm

3.0 mm ±0.1

UL1365 (stranded)

28

7/0.127

0.66 mm

16/5/0.102

0.4 mm

3.2 mm ±0.15

UL1365 (stranded)

26

7/0.160

0.66 mm

16/5/0.127

0.4 mm

3.3 mm ±0.15

UL1365 (stranded)

24

7/0.203

0.66 mm

16/5/0.127

0.4 mm

3.4 mm ±0.15

UL1365 (solid)

30

7/0.255

0.66 mm

16/5/0.127

0.4 mm

3.0 mm ±0.15
