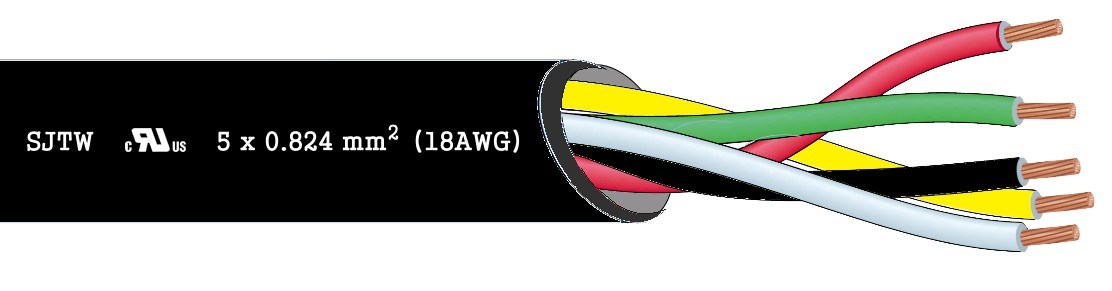

7.9 UL CSA SJT Power Supply Cord

Suitable for portable hand tools.washing machine.medical equipment.polisher.

分享到

PRODUCT DESCRIPTION

*Bare stranded copper conductor

* PVC Insulation

*Rated temperature 60°C 75°C 105°C

*Rated voltage:300V

*Water-proof PVC Jacket

*Oil Resistance.Abrasion.

*SJTO oil-res trait, SJTO for outdoor use

MAP® 美規 SJT.SJTO.SJTW-A.SJTOW-A

MODEL AWG	導體結構 NO.X MM	絕緣厚度 INS THK	披覆厚度 JACKET THK	完成外徑 OVERALL DIA	包裝英制 PACKING
18AWG x 2C	41/0.16	0.76 mm	0.76 mm	7.5 mm ± 0.15	1000FT/Coil
16AWG x 2C	26/0.255	0.76 mm	0.76 mm	8.1 mm ± 0.15	1000FT/Coil
14AWG x 2C	41/0.255	0.76 mm	0.76 mm	9.0 mm ± 0.15	1000FT/Coil
12AWG x 2C	65/0.255	0.76 mm	1.14 mm	9.9 mm ± 0.15	1000FT/Coil
10AWG x 2C	65/0.32	1.14 mm	1.52 mm	14.0 mm ± 0.15	1000FT/Coil
18AWG x 3C	41/0.16	0.76 mm	0.76 mm	7.8 mm ± 0.15	1000FT/Coil
16AWG x 3C	26/0.255	0.76 mm	0.76 mm	8.5 mm ± 0.15	1000FT/Coil
14AWG x 3C	41/0.255	0.76 mm	0.76 mm	9.5 mm ± 0.15	1000FT/Coil
12AWG x 3C	65/0.255	0.76 mm	1.14 mm	10.5 mm ± 0.15	1000FT/Coil
10AWG x 3C	105/0.255	1.14 mm	1.52 mm	13.45 mm ± 0.15	1000FT/Coil
