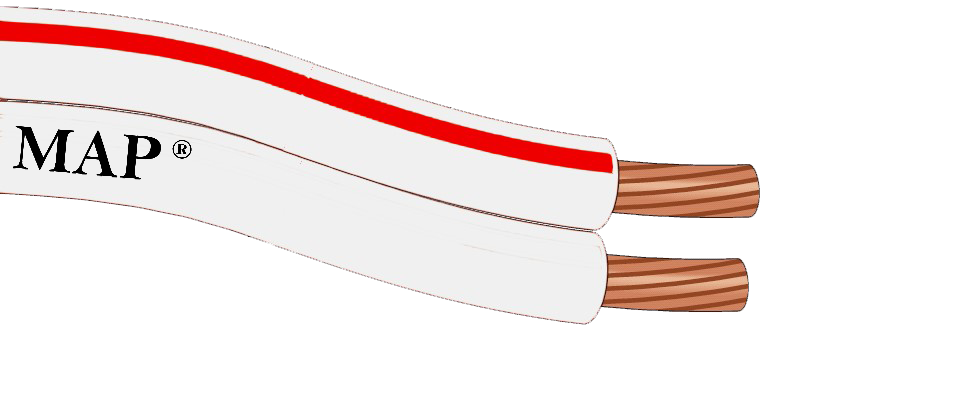

7.8 UL CSA SPT CABLE

Suitable for general electrical equipment:as broadcast systems, speakers, low-loading electrical appliances.

分享到

PRODUCT DESCRIPTION

*Stranded bare copper conductor

* PVC insulation

* Rated temperature 60°C or 105°C

* Rated voltage:300V

* Available UL &CSA flame test

AREA MM²	NO.X MM	NO.	INS THK	OVERALL DIA	CON RES	INS RES
0.75mm ²	30/0.18	2C	0.8 mm	3.0 x 6.0 mm ± 0.1	25.8 Ω/KM max	50MΩ/KM min
1.25mm ²	50/0.18	2C	0.8 mm	3.2 x 6.4 mm ± 0.1	15.6Ω/KM max	50MΩ/KM min
