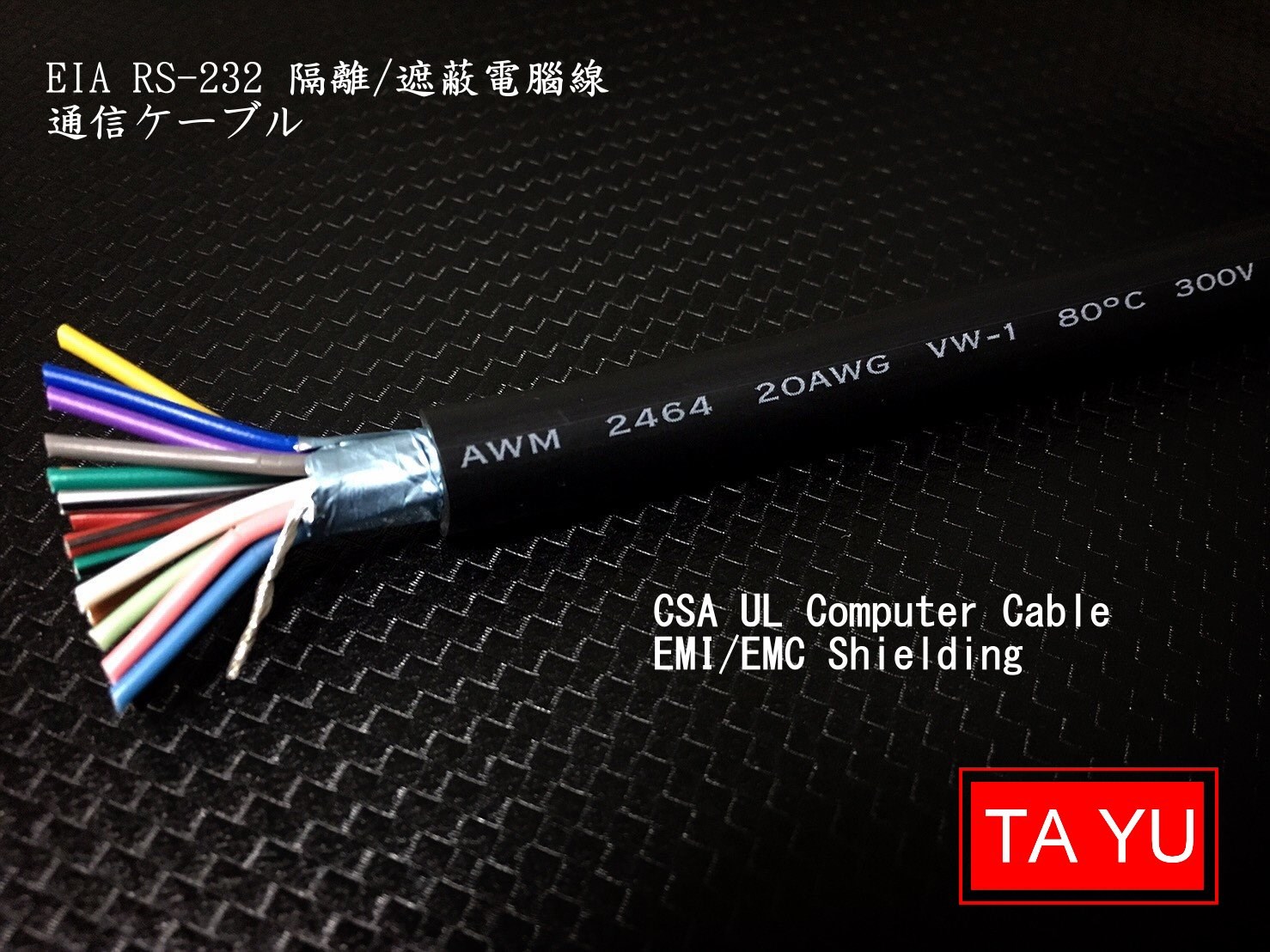

6.1 UL2464 Computer Cable

Product Fetaure:
Tinned stranded copper conductor
Semi-rigid PVC insulation
Cross cable under Al and braid shield
Tinned stranded copper drain wire
Data transmission cable,PVC jacket
Rated temperature80 °C
Rated voltage:300V
FlameVW-1 Approval

分享到

商品特色

MAP® UL2464 COMPUTER CABLE Compliant to EIA/TIA 【RS-232、RS-485】

產品說明 PRODUCT DESCRIPTION

*導體為鍍錫銅 Tinned stranded copper conductor

*半硬質PVC絕緣 Semi-rigid PVC insulation

*芯線集合後鋁箔帶及編織網隔離 Cross cable under Al and braid shield

*鍍錫軟銅地線 Tinned stranded copper drain wire

*資料傳輸電纜, PVC披覆 Data transmission cable, PVC jacket

*額定溫度80°C Rated temperature80 °C

*額定電壓300V Rated voltage:300V

*符合VW-1 FlameVW-1 Approval

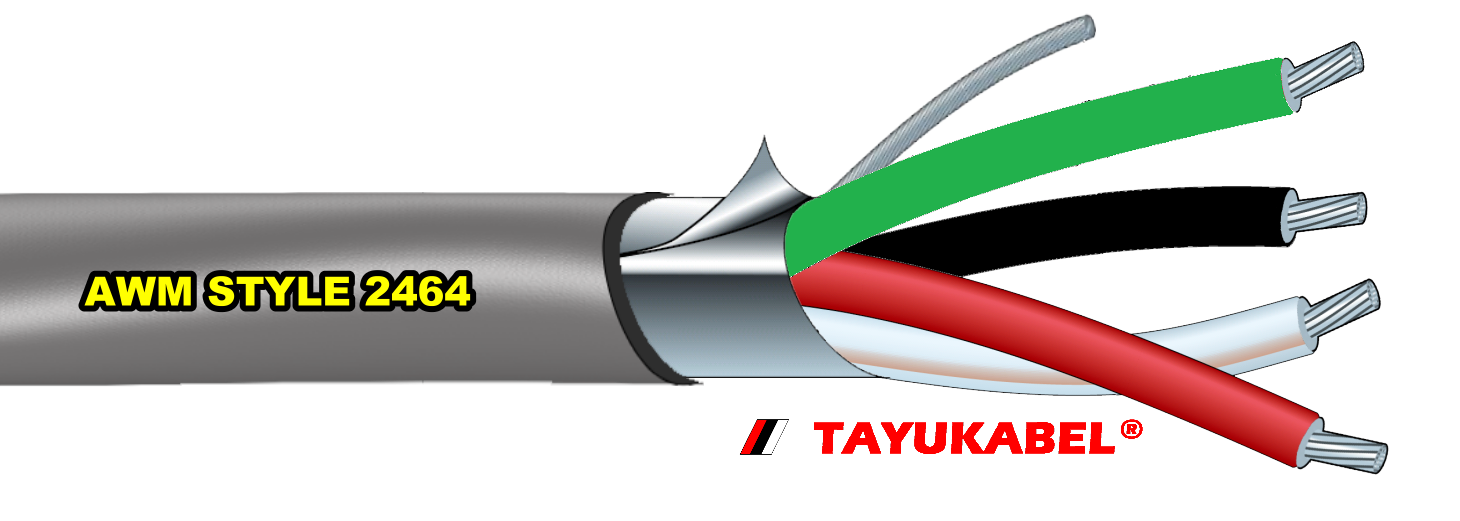

單遮蔽電腦線(AL+Drain)符合國際電工法規EIA RS-232 CAD/CAM之規定。適用於螢幕顯示器.儀器.控制器.自動化設備等...

This computer can be used in monitors, machine tools, and controllers. Lead-free, Resistance-abrasion.

SINGLE SHIELD 單隔離【鋁箔遮蔽+地線】 AWM2464 28AWG

MODEL	AWG	NO. OF COND.	NO.OD CORE	SHIELD MATERIAL	INSULATION THICKNESS	JACKET THICKNESS	OVERALL DIAMETER
UL2464	28	7/0.127	3C	AL Foil 100%	0.229 mm	0.76 mm	3.8 mm ± 5%
UL2464	28	7/0.127	4C	AL Foil 100%	0.229 mm	0.76 mm	4.0 mm ± 5%
UL2464	28	7/0.127	7C	AL Foil 100%	0.229 mm	0.76 mm	5.0 mm ± 5%
UL2464	28	7/0.127	9C	AL Foil 100%	0.229 mm	0.76 mm	6.0 mm ± 5%
UL2464	28	7/0.127	25C	AL Foil 100%	0.229 mm	0.76 mm	8.0 mm ± 5%
UL2464	28	7/0.127	37C	AL Foil 100%	0.229 mm	0.76 mm	9.0 mm ± 5%
UL2464	28	7/0.127	50C	AL Foil 100%	0.229 mm	0.76 mm	10.5 mm ± 5%

SINGLE SHIELD 單隔離【鋁箔遮蔽+地線】 AWM2464 26AWG

MODEL	AWG	NO. OF COND.	NO.OD CORE	SHIELD MATERIAL	INSULATION THICKNESS	JACKET THICKNESS	OVERALL DIAMETER
UL2464	26	7/0.16	3C	AL Foil 100%	0.229 mm	0.76 mm	3.6 mm ± 5%
UL2464	26	7/0.16	4C	AL Foil 100%	0.229 mm	0.76 mm	4.0 mm ± 5%
UL2464	26	7/0.16	7C	AL Foil 100%	0.229 mm	0.76 mm	4.5 mm ± 5%
UL2464	26	7/0.16	9C	AL Foil 100%	0.229 mm	0.76 mm	6.0 mm ± 5%
UL2464	26	7/0.16	12C	AL Foil 100%	0.229 mm	0.76 mm	6.5 mm ± 5%
UL2464	26	7/0.16	16C	AL Foil 100%	0.229 mm	0.76 mm	7.0 mm ± 5%
UL2464	26	7/0.16	25C	AL Foil 100%	0.229 mm	0.76 mm	8.5 mm ± 5%

SINGLE SHIELD 單隔離【鋁箔遮蔽+地線】 AWM2464 24AWG

MODEL	AWG	NO. OF COND.	NO.OD CORE	SHIELD MATERIAL	INSULATION THICKNESS	JACKET THICKNESS	OVERALL DIAMETER
UL2464	24	7/0.203	2C	AL Foil 100%	0.229 mm	0.76 mm	4.1 mm ± 5%
UL2464	24	7/0.203	4C	AL Foil 100%	0.229 mm	0.76 mm	4.5 mm ± 5%
UL2464	24	7/0.203	7C	AL Foil 100%	0.229 mm	0.76 mm	5.5 mm ± 5%
UL2464	24	7/0.203	9C	AL Foil 100%	0.229 mm	0.76 mm	6.0 mm ± 5%
UL2464	24	7/0.203	12C	AL Foil 100%	0.229 mm	0.76 mm	6.5mm ± 5%
UL2464	24	7/0.203	16C	AL Foil 100%	0.229 mm	0.76 mm	7.5mm ± 5%
UL2464	24	7/0.203	25C	AL Foil 100%	0.229 mm	0.76 mm	9.0 mm ± 5%

SINGLE SHIELD 單隔離【鋁箔遮蔽+地線】 AWM2464 22AWG

MODEL	AWG	NO. OF COND.	NO.OD CORE	SHIELD MATERIAL	INSULATION THICKNESS	JACKET THICKNESS	OVERALL DIAMETER
UL2464	22	17/0.16	2C	AL Foil 100%	0.229 mm	0.76 mm	4.2 mm ± 5%
UL2464	22	17/0.16	4C	AL Foil 100%	0.229 mm	0.76 mm	5.0 mm ± 5%
UL2464	22	17/0.16	7C	AL Foil 100%	0.229 mm	0.76 mm	6.3 mm ± 5%
UL2464	22	17/0.16	9C	AL Foil 100%	0.229 mm	0.76 mm	6.5 mm ± 5%
UL2464	22	17/0.16	12C	AL Foil 100%	0.229 mm	0.76 mm	7.0 mm ± 5%
UL2464	22	17/0.16	16C	AL Foil 100%	0.229 mm	0.76 mm	8.0 mm ± 5%
UL2464	22	17/0.16	25C	AL Foil 100%	0.229 mm	0.76 mm	9.5 mm ± 5%

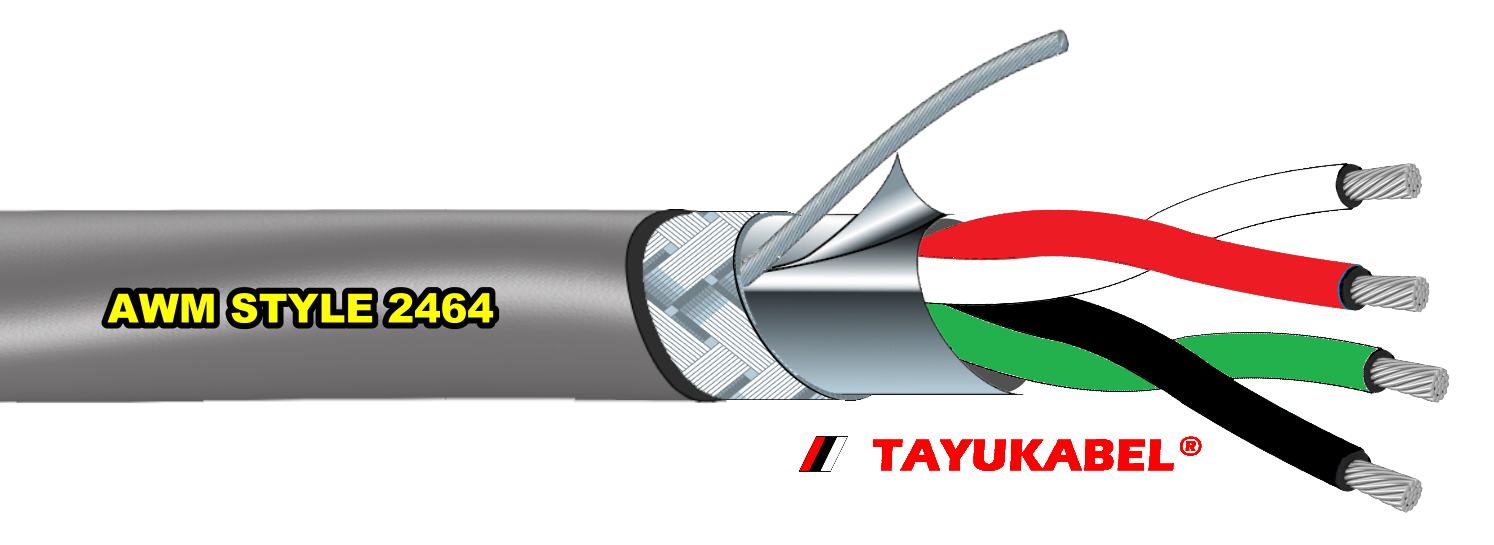

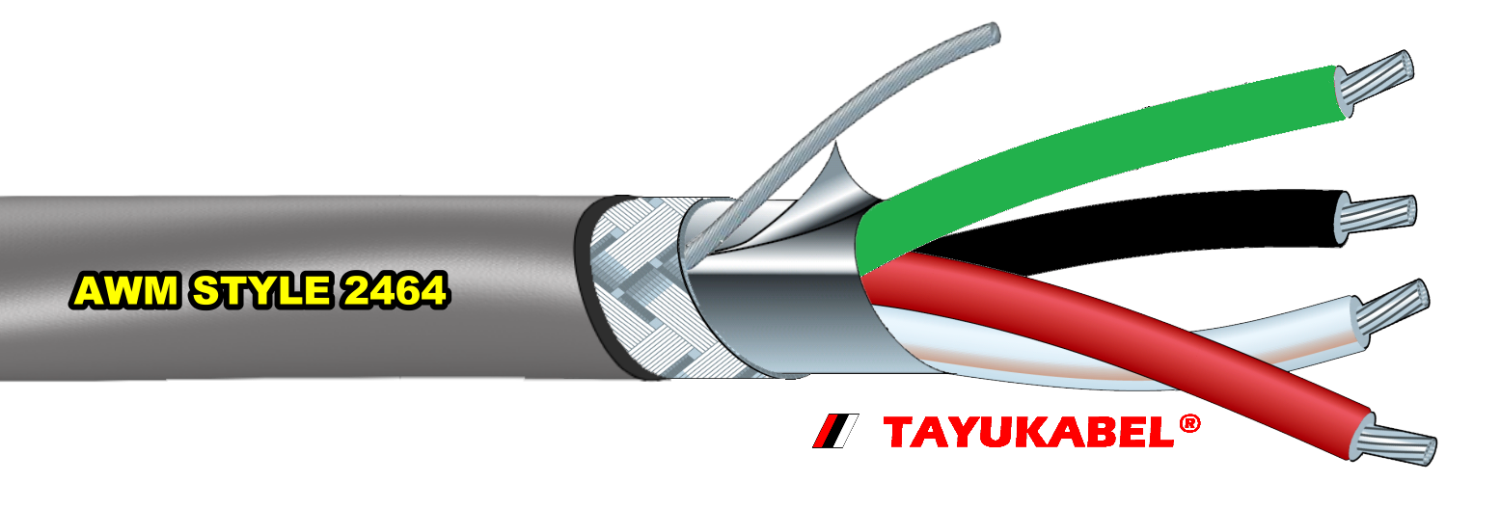

雙遮蔽電腦線(Braid+AL+Drain):符合國際電工法規EIA RS-232 CAD/CAM之規定。適用於伺服器.機床.主控制台.自動化設備等...

This computer can be used in servers, machines, main controllers, and auto-equipment. Lead-free, Resistance-abrasion

DUAL SHIELD 雙隔離【鋁箔遮蔽+地線+編織85%】 AWM2464 28AWG

MODEL	AWG	NO. OF COND.	NO.OD CORE	SHIELD MATERIAL	BRAID COVERAGE	INSULATION THICKNESS	JACKET THICKNESS	OVERALL DIAMETER
UL2464	28	7/0.127	3C	AL Foil+Drain wire	Braided Coverage 85%	0.25 mm	0.80 mm	3.8 mm ± 5%
UL2464	28	7/0.127	4C	AL Foil+Drain wire	Braided Coverage 85%	0.25 mm	0.80 mm	4.5 mm ± 5%
UL2464	28	7/0.127	7C	AL Foil+Drain wire	Braided Coverage 85%	0.25 mm	0.80 mm	5.0 mm ± 5%
UL2464	28	7/0.127	9C	AL Foil+Drain wire	Braided Coverage 85%	0.25 mm	0.80 mm	5.8 mm ± 5%
UL2464	28	7/0.127	25	AL Foil+Drain wire	Braided Coverage 85%	0.25 mm	1.02 mm	7.5 mm ± 5%
UL2464	28	7/0.127	37	AL Foil+Drain wire	Braided Coverage 85%	0.25 mm	1.02 mm	9.0 mm ± 5%
UL2464	28	7/0.127	50	AL Foil+Drain wire	Braided Coverage 85%	0.25 mm	1.02 mm	10.5 mm ± 5%

DUAL SHIELD 雙隔離【鋁箔遮蔽+地線+編織85%】 AWM2464 26AWG

MODEL	AWG	NO. OF COND.	NO.OD CORE	SHIELD MATERIAL	BRAID COVERAGE	INSULATION THICKNESS	JACKET THICKNESS	OVERALL DIAMETER
UL2464	26	7/0.16	3C	AL Foil+Drain wire	Braided Coverage 85%	0.229 mm	0.76 mm	4.2 mm ± 5%
UL2464	26	7/0.16	4C	AL Foil+Drain wire	Braided Coverage 85%	0.229 mm	0.76 mm	4.7 mm ± 5%
UL2464	26	7/0.16	7C	AL Foil+Drain wire	Braided Coverage 85%	0.229 mm	0.76 mm	5.5 mm ± 5%
UL2464	26	7/0.16	9C	AL Foil+Drain wire	Braided Coverage 85%	0.229 mm	0.76 mm	6.0 mm ± 5%
UL2464	26	7/0.16	12C	AL Foil+Drain wire	Braided Coverage 85%	0.229 mm	0.76 mm	6.5 mm ± 5%
UL2464	26	7/0.16	16C	AL Foil+Drain wire	Braided Coverage 85%	0.229 mm	0.76 mm	7.5 mm ± 5%
UL2464	26	7/0.16	25C	AL Foil+Drain wire	Braided Coverage 85%	0.229 mm	0.76 mm	9.0 mm ± 5%
UL2464	26	7/0.16	37C	AL Foil+Drain wire	Braided Coverage 85%	0.229 mm	0.76 mm	10.0 mm ± 5%

DUAL SHIELD 雙隔離【鋁箔遮蔽+地線+編織85%】 AWM2464 24AWG

MODEL	AWG	NO. OF COND.	NO.OD CORE	SHIELD MATERIAL	BRAID COVERAGE	INSULATION THICKNESS	JACKET THICKNESS	OVERALL DIAMETER
UL2464	24	7/0.20	2C	AL Foil+Drain wire	Braided Coverage 85%	0.229 mm	0.76 mm	4.5 mm ± 5%
UL2464	24	7/0.20	4C	AL Foil+Drain wire	Braided Coverage 85%	0.229 mm	0.76 mm	5.0 mm ± 5%
UL2464	24	7/0.20	7C	AL Foil+Drain wire	Braided Coverage 85%	0.229 mm	0.76 mm	6.0 mm ± 5%
UL2464	24	7/0.20	9C	AL Foil+Drain wire	Braided Coverage 85%	0.229 mm	0.76 mm	6.5 mm ± 5%
UL2464	24	7/0.20	12C	AL Foil+Drain wire	Braided Coverage 85%	0.229 mm	0.76 mm	7.0 mm ± 5%
UL2464	24	7/0.20	16C	AL Foil+Drain wire	Braided Coverage 85%	0.229 mm	0.76 mm	8.0 mm ± 5%
UL2464	24	7/0.203	25C	AL Foil+Drain wire	Braided Coverage 85%	0.229 mm	0.76 mm	9.0 mm ± 5%

DUAL SHIELD 雙隔離【鋁箔遮蔽+地線+編織85%】 AWM2464 22AWG

MODEL	AWG	NO. OF COND.	NO.OD CORE	SHIELD MATERIAL	BRAID COVERAGE	INSULATION THICKNESS	JACKET THICKNESS	OVERALL DIAMETER
UL2464	22	17/0.16	2C	AL Foil+Drain wire	Braided Coverage 85%	0.229 mm	0.76 mm	5.0 mm ± 5%
UL2464	22	17/0.16	3C	AL Foil+Drain wire	Braided Coverage 85%	0.229 mm	0.76 mm	5.0 mm ± 5%
UL2464	22	17/0.16	4C	AL Foil+Drain wire	Braided Coverage 85%	0.229 mm	0.76 mm	5.5 mm ± 5%
UL2464	22	17/0.16	6C	AL Foil+Drain wire	Braided Coverage 85%	0.229 mm	0.76 mm	6.5 mm ± 5%
UL2464	22	17/0.16	9C	AL Foil+Drain wire	Braided Coverage 85%	0.229 mm	0.76 mm	7.0 mm ± 5%
UL2464	22	17/0.16	12C	AL Foil+Drain wire	Braided Coverage 85%	0.229 mm	0.76 mm	7.8 mm ± 5%
UL2464	22	17/0.16	16C	AL Foil+Drain wire	Braided Coverage 85%	0.229 mm	0.76 mm	8.5 mm ± 5%
UL2464	22	17/0.16	25C	AL Foil+Drain wire	Braided Coverage 85%	0.229 mm	0.76 mm	10.0 mm ±5%

DUAL SHIELD 雙隔離【鋁箔遮蔽+地線+編織85%】 AWM2464 24AWG 對型 (雙絞線)

MODEL	AWG	NO. OF COND.	NO.OD CORE	SHIELD MATERIAL	BRAID COVERAGE	INSULATION THICKNESS	JACKET THICKNESS	OVERALL DIAMETER
UL2464	24	7/0.20	2P	AL Foil+Drain wire	Braided Coverage 85%	0.229 mm	0.76 mm	5.5 mm ± 5%
UL2464	24	7/0.20	3P	AL Foil+Drain wire	Braided Coverage 85%	0.229 mm	0.76 mm	6.0 mm ± 5%
UL2464	24	7/0.20	4P	AL Foil+Drain wire	Braided Coverage 85%	0.229 mm	0.76 mm	7.0 mm ± 5%
UL2464	24	7/0.20	5P	AL Foil+Drain wire	Braided Coverage 85%	0.229 mm	0.76 mm	7.5 mm ± 5%

DUAL SHIELD 雙隔離【鋁箔遮蔽+地線+編織85%】 AWM2464 22AWG 對型 (雙絞線)

MODEL	AWG	NO. OF COND.	NO.OD CORE	SHIELD MATERIAL	BRAID COVERAGE	INSULATION THICKNESS	JACKET THICKNESS	OVERALL DIAMETER
UL2464	22	17/0.16	2P	AL Foil+Drain wire	Braided Coverage 85%	0.229 mm	0.76 mm	6.5 mm ± 5%
UL2464	22	17/0.16	3P	AL Foil+Drain wire	Braided Coverage 85%	0.229 mm	0.76 mm	7.0 mm ± 5%
UL2464	22	17/0.16	4P	AL Foil+Drain wire	Braided Coverage 85%	0.229 mm	0.76 mm	7.5 mm ± 5%
UL2464	22	17/0.16	5P	AL Foil+Drain wire	Braided Coverage 85%	0.229 mm	0.76 mm	8.5 mm ± 5%
