TAYUKABEL® 498K-1320 series passed IEC 60332-3-23 testing (Bunched burning category 3B)
The 498K-1320 series is a rolling stock railway cable product that complies with the European Union rail vehicle standard EN 45545-2.
It has the characteristics of flame retardant [cable is flame retardant], halogen-free [cable is non-toxic], low smoke [smoke density] .
Verified by a third-party international laboratory (ISO/IEC 17025 CERTIFICATE), the TÜV SÜD LAB Rheinland laboratory in Germany was entrusted to conduct combustion tests.
Test standard Compliant to IEC 60332-3-23 (EN 60332-3-23) STANDARD
Verification result: Passed test

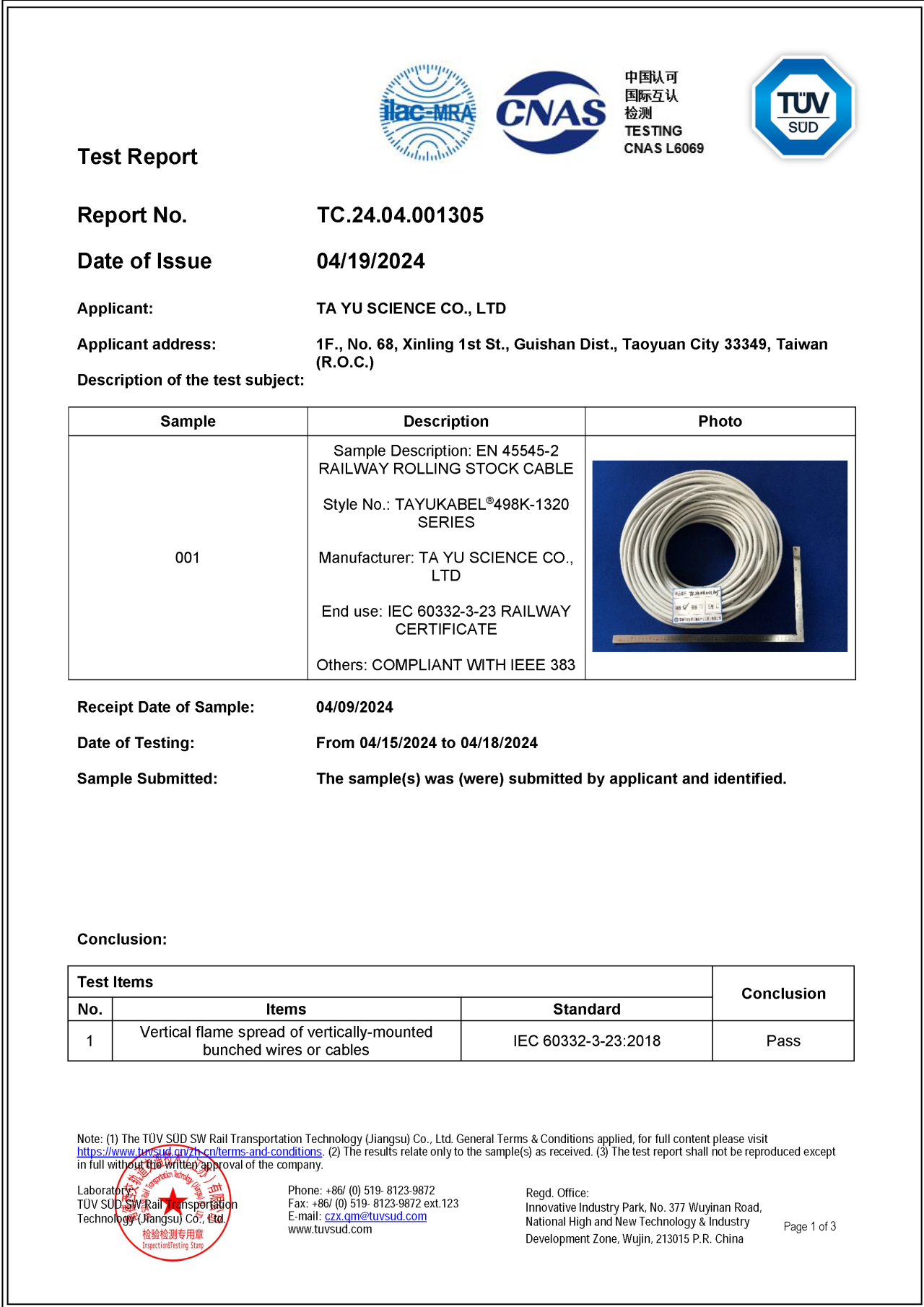

TÜV SÜD issues verification report: TÜV SÜD TC.24.04.001305
TÜV SÜD issues verification report: TÜV SÜD TC.24.04.001306
Cable flame retardancy:
The cable test sample line burns under the specified fire source and ventilation conditions. It has self-extinguishing characteristics after the fire source is removed, and the flame delay length complies with IEC standards; the product is judged to be flame retardant or flame retardant.

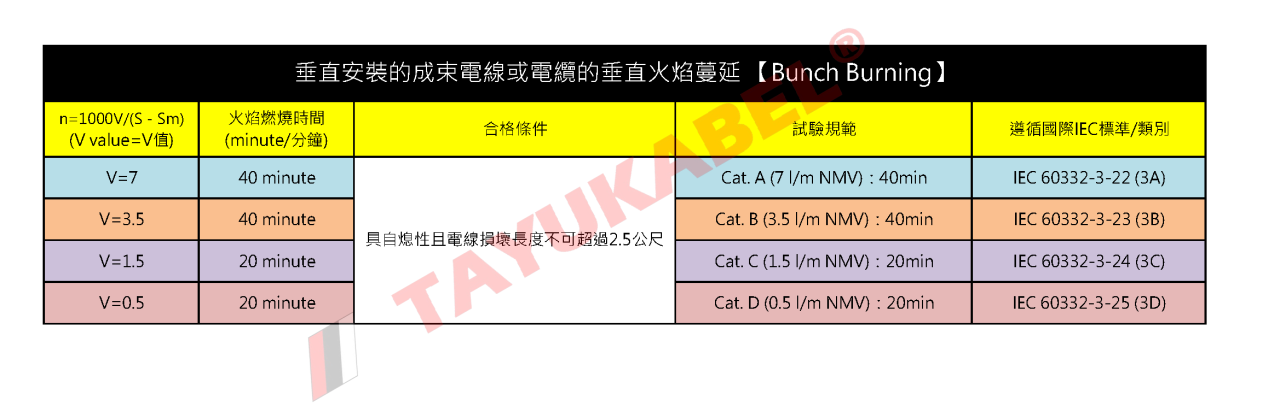

IEC 60332-3-23(EN 60332-3-23)
IEC 60332-3-23:2009 Tests on electric and optical fiber cables under fire conditions Part 3-23: Test for vertical flame spread of vertically-mounted bunched wires or cables – Category B
【Note.1】 n is the number of specimens
【Note.2】S is the cable cross-sectional area (mm²)
【Note.3】Sm is the conductor cross-sectional area (mm²)
Data reference resource :
https://webstore.iec.ch/publication/34050
